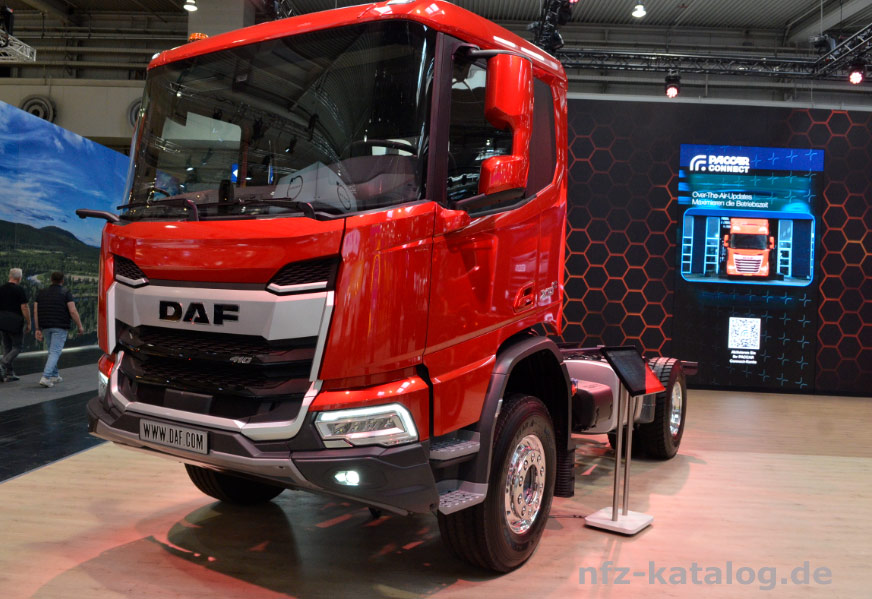

DAF XDC 410 FA. High chassis based on the DAF XD.
What used to be called the CF Construction is now the DAF XDC: the XD chassis for construction transport. The high ground clearance, special wheels and modified drive (with TraXon 12-speed automatic transmission) make this chassis suitable for building a tipper, for example.
Front axle type 167N, rear axle type SR1344.
Also available as XDC 300, XDC 340, XDC 370 and XDC 450 with 220, 251, 270 and 330 kW power respectively.
Optional with: Urge-to-Move Mode, Corner View (corner camera), DAF Side & Turn Assist, MX engine brake.
technical specifications *)
DAF XDC 410 FA
model year 2025 –
engine type Paccar PX-11
cylinder capacity 10837 cc
emission class euro 6
max. power 300 kW
max. torque 2000 Nm
speed at max. torque 900 rpm
number of gears 12
drive rear axle
tyre size 385/65R22.5 (f) – 315/80R22.5 (a)
number of tyres 6
axle configuration 4×2
gvw 20500 kg
max. axle load front 8000 kg
max. axle load rear 11500 (technically 13000) kg
*) subject to change. Exact specifications can be requested from the supplier.
