Fiat Ducato Chassis Cab L3 / L4 110kW 3.3t / 3.5t / 3.5t Heavy Duty. Van chassis, max. body length approx. 425 / 460 cm, gross load capacity approx. 1674 – 1874 kg.
Fiat Ducato L3 chassis with single cabin, and 2.2 liter diesel engine with, according to your preference, 88 – 132 kW. A box up to approximately 425 cm (L3) or 460 cm (L4) length can be built onto this chassis. Weight classes 3.3t, 3.5t and 3.5t Heavy Duty. (The latter chassis is reinforced for greater stability.)

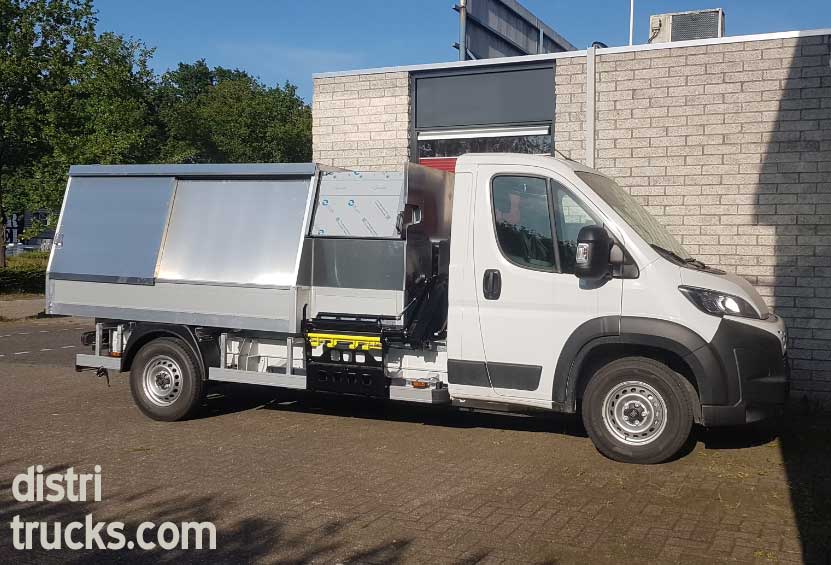

The Ducato is a reliable van. This chassis can be built with, for example, a closed box (Cargobox), possibly with a tail lift. But other types of bodies are also available. The photo shows a dirt sweeper body from Karhof.
If the body is heavy, you should take into account a limited net load capacity (600 – 1000 kg).
This Fiat Ducato chassis is also available with an electric motor, also in lengths L3 and L4. The maximum permissible weight is then 4250 kg.
technical specifications *)
Fiat Ducato Chassis Cab L3 / L4 110kW 3.3t / 3.5t / 3.5t Heavy Duty
model year 2024 –
engine type 4 cyl common rail turbo diesel
cylinder capacity 2200 cc
turbo yes
max. power 88 – 132 kW
number of gears 6
automatic available yes (optional 8-speed automatic)
drive front wheels
tyre size 215/70 R15
number of tyres 4
axle configuration 4×2
wheelbase 404 cm
tare weight bare chassis approx. 1626 / 1626 / 1666 – with box and tail lift 2900 kg
gvw 3300 / 3500 / 3500 kg
load capacity 1674 / 1874 / 1834 – with cargo box and tail lift: approx. 600 kg
length approx. 620 / 655 cm
width 205 cm – with cargobox: approx. 236 cm
height 215 cm (total height depends on body)
max. body length approx. 425 / 460 cm
max. body width approx. 235 cm
number of seats 2 or 3
average fuel consumption (NEDC) 6.7 l / 100 km
*) subject to change. Exact specifications can be requested from the supplier.
