Renault Trucks T High 480 Turbo Compound — luxury 4×2 tractor with fuel-saving options. Tractor, 4×2, high version with flat cabin floor, power 480 hp / 360 kW, Turbo Compound engine.
High version of the Renault Trucks T480 4×2 tractor. The T High has a high cabin and a flat cabin floor, and is the Renault truck with the largest cabin and therefore the most living space for the driver.
The Turbo Compound engine, the 13-liter six-cylinder from the Volvo Group that is equipped with Turbo Compound, is very suitable for long-distance transport. This means that the exhaust gases are cooled and converted into extra drive energy. This leads to more favorable consumption. This engine has even more adjustments, such as improved injectors, less internal friction, specially designed pistons, a variable oil pump and a steering pump that only works when necessary. In addition, the truck is equipped with aerodynamic extras that reduce air resistance. All in all, a fuel saving of ten percent is possible. The Turbo Compound engine is only available from Renault Trucks with 480 hp.
In addition to the high model, there is also a T480 Turbo Compound with a standard cabin. The tractor is also available as a 6×2.

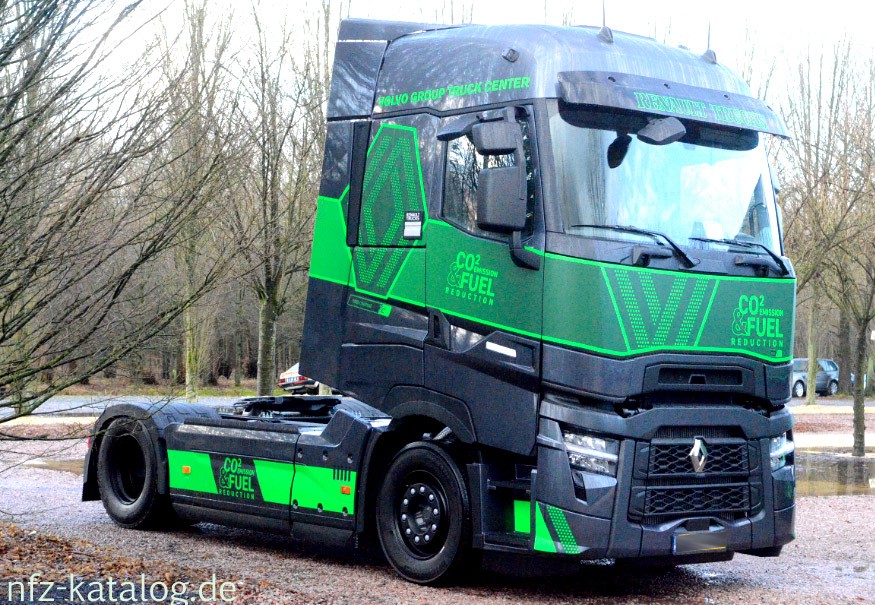

The model in the photo is equipped with a long list of technical and luxury accessories, and then comes to an empty weight of 8354 kg. With an eight-ton front axle, the maximum fifth wheel pressure is then more than eleven tons.
technical specifications *)
Renault Trucks T High 480 Turbo Compound — luxury 4×2 tractor with fuel-saving options
model year 2023 –
engine type 6 cyl in-line diesel
cylinder capacity 12777 cc
emission class euro 6
max. power 360 kW
rpms at max. power 1400 rpm
max. torque 2700 Nm
rpms at max. torque 1050 rpm
drive rear axle
tyre size 385/55 – 315/70 R22.5
number of tyres 6
axle configuration 4×2
wheelbase 380 cm
tare weight incl. accessories 8354 kg
gvw 19500 kg
max. axle load front 8000 kg
max. axle load rear 11500 kg
max. fifth wheel pressure approx. 11146 kg
max. train weight 50000 kg
length 599 cm
width 253 cm
height approx. 400 cm
chassis height approx. 95 cm
dish height approx. 110 cm
remarks: Turbo Compound engine
*) subject to change. Exact specifications can be requested from the supplier.
