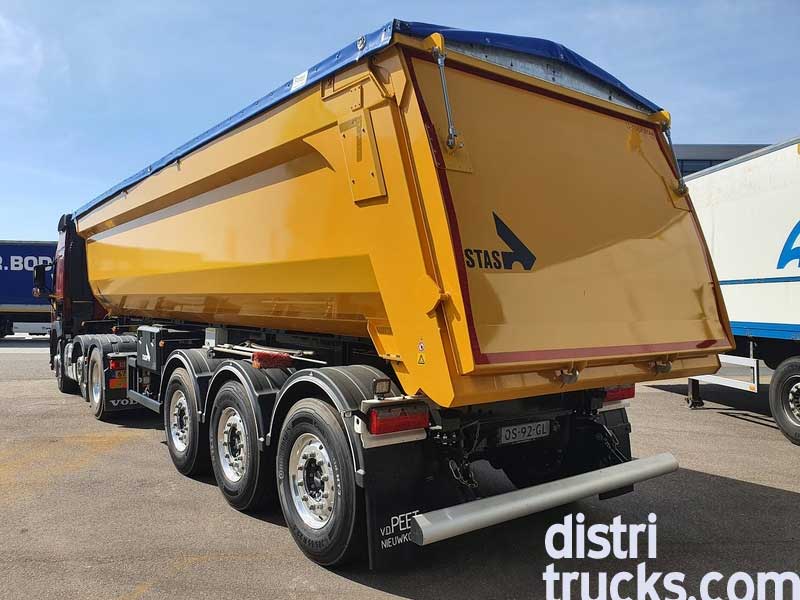

Stas S300CX U-Rockstar — Hardox tipper (available in two lengths). Rock tipper, capacity 24.5 or 27.6 m3, load capacity 30.7 – 34.1 tonnes.
Three-axle tipper for transporting coarse stones / demolition material. Watertight hydraulic tailgate. Locking system with roll stops or Cramaro system. Pneumatically controlled air spray system. Built-in tub traverse. ECAS electronic air suspension.
Available in two lengths: 7565 or 8540 mm internal length (sloping front board and tailgate). The internal height is 1500 mm and the internal width 2160 mm. The U-Rockstar is also available as an insulated trailer, for asphalt transport.
The chassis is made of lightweight steel. The body of Hardox. The tipping pivot point is integrated into the chassis for good stability.
This trailer has (depending on the model) a gross vehicle weight of 39 to 42 tonnes (12 to 15 tonnes on the fifth wheel and three times 9 tonnes on the axles). With a tare weight of 7940 – 8260 kg, a loading capacity of 30740 – 34060 kg remains.
Below are the technical specifications (subject to change). Please note: exact specifications depend on the model.
technical specifications *)
Stas S300CX U-Rockstar — Hardox tipper (available in two lengths)
type tipper for bulky material
length 959-1004 cm
width 255 cm
int. length / loading length 756.5 or 854 cm
int. width / loading width 216 cm
int. height / loading height 150 cm
gvw 39000-42000 kg
tarra 8260-7940 kg
payload 30740-34060 kg
max. kingpin weight 12000-15000 kg
max. axle load (3 x 9000 =) 27000 kg
load volume 24500 or 27600 dm3
*) subject to change. Exact specifications can be requested from the supplier.
