DAF XD Car Transporter Chassis (4×2 or 6×2). Low chassis for a car transporter, two or three axles, low cab, 300 to 450 hp.
Ultra-low chassis of the DAF XD, designed for car transporters. This chassis can now be ordered ex-factory from DAF. Available with an 11-liter diesel engine, with outputs from 220 to 330 kW (300 to 450 hp).

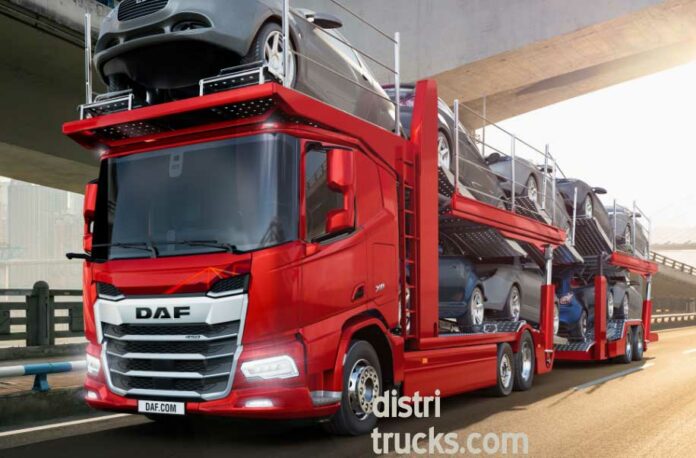

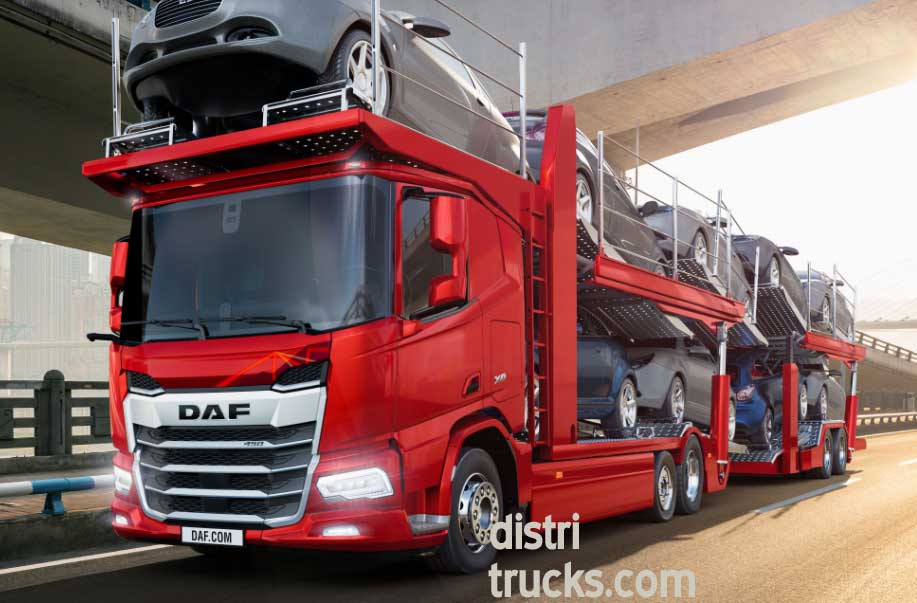

The XD’s low-deck chassis serves as the basis, which has been further lowered by lowering the suspension by 4 cm. This results in a chassis height of only 83 cm, with the rear wheels still being slightly higher than the chassis (clearly visible in the photo). The cab roof has been lowered by 18 cm and can optionally be beveled at the rear, allowing you to transport up to nine passenger cars with a combination. Driver comfort remains unaffected, DAF reports: this cab still features a full-sized sleeping area for the driver.
The front and rear axles are mounted on 22.5-inch rims with low-profile tires. Also available as a 6×2 with a 17.5-inch 4.5-ton pusher axle (non-liftable).
Predictive Cruise Control comes standard, with a choice of traditional mirrors or cam mirrors. A blind-spot camera is also included. Suitable for bodies such as Groenewold, Rolfo, or Kässbohrer. Other bodies, such as those for transporting machinery or trucks, can also be used.
Technical specifications *)
DAF XD Car Transporter chassis (4×2 or 6×2)
Model year 2025 –
Engine type: 6-cylinder diesel
Engine capacity: 10838 cc
Emission class: Euro 6
Max. power: 220 / 251 / 270 / 300 / 330 kW
at revs: 2000 rpm
Max. torque: 1450 / 1650 / 1950 / 2150 / 2350 Nm
at revs: 900 rpm
Number of gears: 12
Automatic transmission available as standard, TraXon automatic transmission
Rear axle drive
Tire size: 22.5-inch low-profile – optionally with a 17.5-inch mid axle
Number of tires: 6 (4×2) or 8 (6×2)
Axle configuration: 4×2 or 6×2
Wheelbase: Various
gvw 19,500 (4×2) or 24,000 (6×2) kg
Max. axle load front 8,000 or 9,000 kg
Max. axle load rear 11,500 (4×2) or 16,000 (6×2) kg
Width 255 cm
Chassis height 83 cm
Cab type: Sleeper cab, lowered 18 cm
*) Subject to change. Exact specifications can be requested from the supplier.
