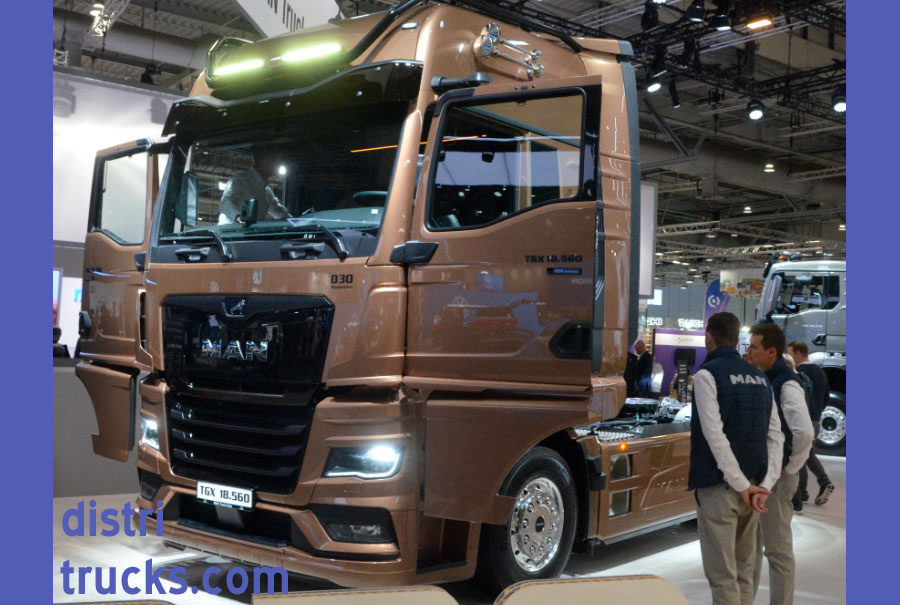

MAN TGX 18.560 4×2 Truckers Edition. Two-axle tractor, power 412 kW, luxury version.
MAN TGX 18.560 Truckers Edition. Special 4×2 tractor, developed in 2024 in consultation with drivers. Equipped with the MAN D3066 six-cylinder diesel engine, tuned to 412 kW / 560 hp maximum power and 2800 Nm torque.
Automatic transmission (MAN TipMatic 14.33 OD with Retarder 47 – 14 gears). GX driver’s cab with aerodynamic exterior, spacious interior (internal length 228 cm and internal height 207 cm at the engine tunnel). Fully air-suspended. Advanced assistance systems such as MAN EfficientCruise with PredictiveDrive—which proactively incorporates topography and route profile into the driving strategy—the EBA Plus emergency braking assistant with front detection, and a turn assist.
The specific details of the Truckers Edition can be found in the interior: climate control, heated seats, MAN Comfortsteering, electric parking cooler, wardrobe, television with remote control, and refrigerator. Also noteworthy are: automatic fifth wheel detection, camera mirrors (MAN OptiView), and a reading light. The exterior stands out with air horns, LED lights above the windshield, and black styling, which most drivers find more attractive than chrome.
This is a limited edition series sold throughout Europe.
technical specifications *) MAN TGX 18.560 4×2 Truckers Edition
model year 2024 –
engine type 6-cylinder diesel
displacement 12,742 cc (D30 engine)
emission class Euro 6e
max. power 412 kW
rpm at max. power 1900 rpm
max. torque 2800 Nm
rpm at max. torque 1000 rpm
number of gears 14
automatic available TipMatic
drive rear axle
tire size 315/70 R22.5
number of tires 6
axle configuration 4×2
wheelbase 390 cm
tare approx. 8250 kg
gross vehicle weight 19000 kg
max. front axle load 7500 kg
max. rear axle load 11500 kg
max. fifth wheel load approx. 10750 kg
max. train weight 57500 kg
length 618 cm
width 255 cm
*) subject to change. Please request exact specifications from the supplier.
