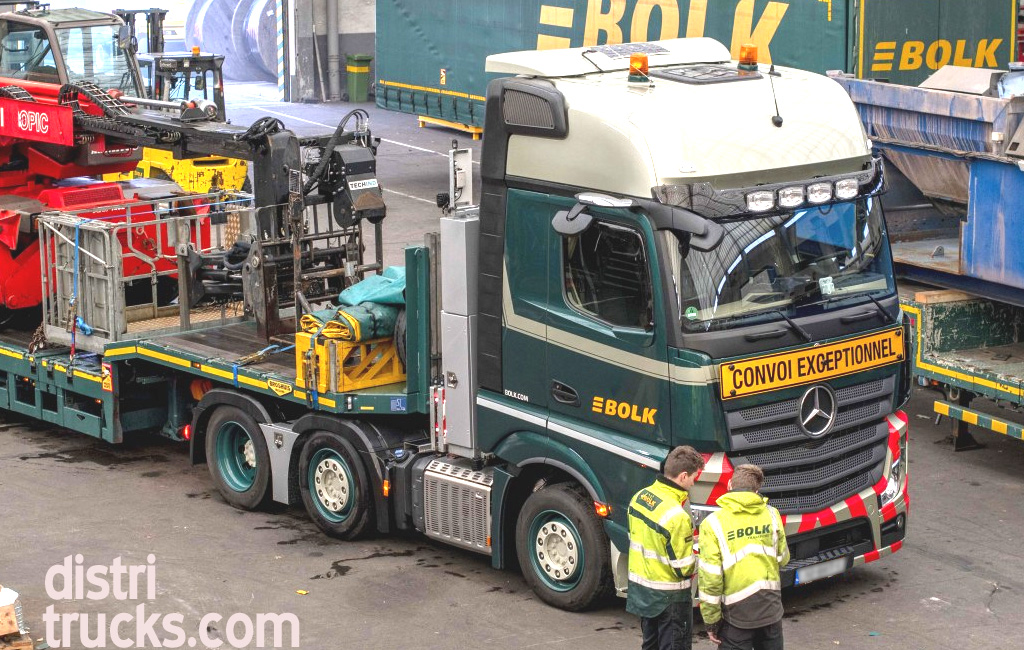

Mercedes-Benz Actros 2548 LLS VLA 6×2/4 LowLiner. Low-height tractor unit, 6×2, steered leading axle, power output 350 kW.
Three-axle tractor unit (6×2 with steered leading axle) in a lowered version. Suitable for heavy volume trailers or deeploaders with a low coupling height. Thanks to a height-adjustable fifth wheel coupling, the coupling height can vary from 95 to 115 cm. Naturally, the truck has air suspension, making coupling easy and allowing for slight adjustment of the ride height. The fifth wheel coupling is also adjustable lengthwise to optimize the center of gravity. The maximum fifth wheel load is almost 17.5 tons.
The power source is Daimler’s 13-liter 6-cylinder diesel engine, which in this version produces 480 hp.
This Actros is equipped with Predictive Powertrain Control. This software ensures that the tractor unit responds to, for example, approaching a roundabout.
Technical specifications *)
Mercedes-Benz Actros 2548 LLS VLA 6×2/4 LowLiner
Model year 2021 –
Engine type: 6-cylinder diesel
Displacement: 12809 cc
Emission class: Euro 6
Max. power: 350 kW
Revs at max. power: 1800 rpm
Max. torque: 2300 Nm
Revs at max. torque: 1080 rpm
Number of gears: 12 (PowerShift)
Rear axle drive
Tire size: 315/70 R22.5
Number of tires: 8
Axle configuration: 6×2/4
Wheelbase: 400 (axles 1 to 3) cm
Tare weight: approx. 9085 kg
Gross vehicle weight: 26500 kg
Max. axle load front: 8000 kg
Max. axle load rear: 19000 kg
Max. fifth-wheel load 17,415 kg
Max. train weight 50,000 kg
Length 646 cm
Width 255 cm
Height 348 cm (optional 309 or 375 cm)
Chassis height approx. 80-85 cm
Fourth wheel height 95-115 cm
Cab length 231 cm (optional: 185 or 210 cm)
*) Subject to change. Exact specifications can be requested from the supplier.
