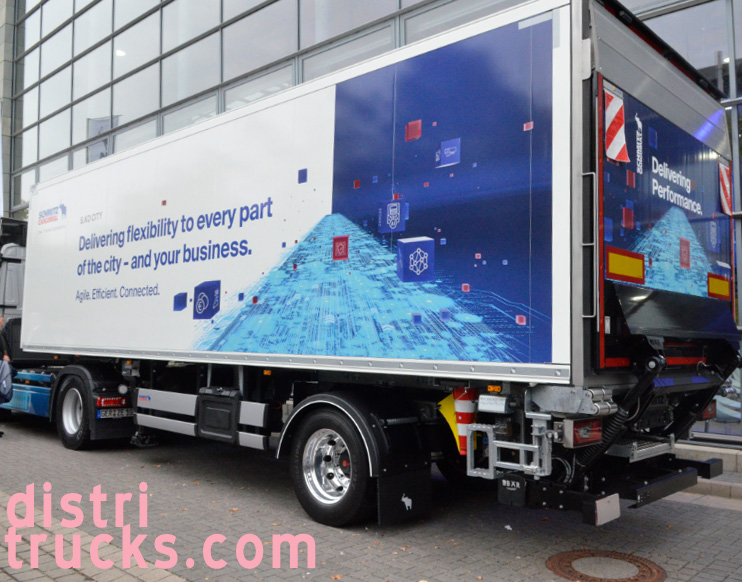

Schmitz Cargobull S.KO City — single-axle city refrigerated trailer, loading length 899 cm, forced-steer axle.
Schmitz Cargobull City trailer, refrigerated/freezer, with refrigeration unit.
Features:
– Ferroplast body with optimal insulation
– Galvanized and bolted short chassis (10-year warranty against corrosion on galvanized parts)
– Mechanical steering system
– Loading length 8.99 m, interior height 2.25 m, interior width 2.49 m
– S.CU d80 transport refrigeration unit, 4-cylinder diesel engine, up to 14 kW cooling capacity, up to 10.5 kW heating capacity, lowest noise emissions of 94.9 dB, optional ePTO interface
– Air duct system with parking position and additional profiles under the evaporator
– Vertical aluminum air duct locking bar with 250 mm handle adjustment
– Bright interior lighting
– Three-part insulated curtain
– Access ramp with underfloor bracket
– Reverse warning system
– Rear-view camera
– Work lights
– LED lighting system (sidelights, side marker lights, linked to turn signals, reversing lights, SL2 safety lights)
– Central electrical distribution box
– Central lubrication system (Bekamax) for power steering and tail lift
– Dynamic rear impact protection (DRP)
– Standard 2.5 t tail lift (Bär)
– Swiveling access ladder with Safe-Start and tail lift locking mechanism
– Standard equipment includes the TrailerConnect telematics control unit and the TrailerConnect tire pressure monitoring system with automatic location determination
Technical specifications *)
Schmitz Cargobull S.KO City — steered refrigerated trailer
Internal length / loading length 899 cm
Internal width / loading width 249 cm
Internal height / loading height 225 cm
*) Subject to change. Exact specifications are available from the supplier.
