DAF – Zikun XD 450 FAN – Swingboard I — 6×2 chassis with folding wall body. 6×2 chassis, closed body with folding sides, 450 hp, load capacity 14.3 tons.

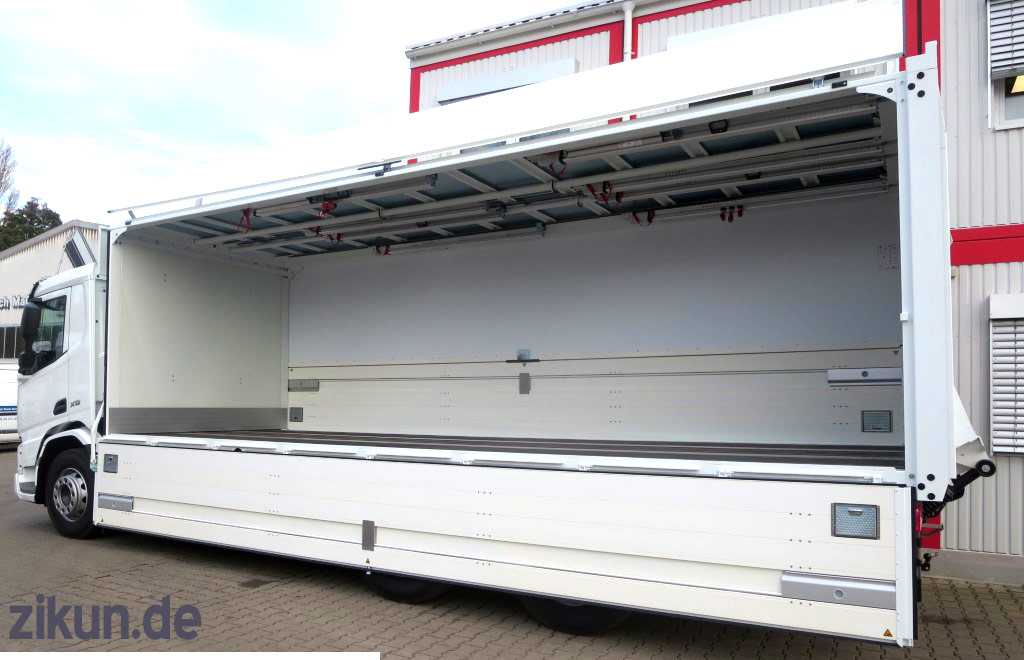

DAF XD chassis with steered trailing axle, equipped with a closed body with sides that fold down and up. This body is intended for the transport of drinks, but of course other goods can also be transported. The name of this system is Swingboard I from the German manufacturer Zikun.
The vehicle in the photo has a wheelbase of 460 cm (axle 1 to axle 2) and a loading platform measuring 725 cm x 248 cm x 215 cm (internal dimensions). The weight of this vehicle is 11670 kg (including the body and a tail lift at the rear). The useful load capacity is 14330 kg.
The DAF XD is also available with electric drive or with a diesel engine with less power.
technical specifications *)
DAF – Zikun XD 450 FAN – Swingboard I — 6×2 chassis with folding wall body
model year 2022 –
engine type Paccar px-11
displacement 10837 cc
emission class euro 6
max. power 330 kW
speed at max. power 2000 rpm
max. torque 2350 Nm
speed at max. torque 900 rpm
number of gears 12 (TraXon)
automatic available yes, 6 gears with torque converter
drive axle 2
tyre size 315/70 R22.5
number of tyres 8
axle configuration 6×2
wheelbase 460 cm
tare weight 11670 incl body kg
gvw 26000 kg
max. axle load front 8000 (option: 9000) kg
max. axle load rear 19000 kg
max. trailer weight 20500 kg
width 255 cm
internal length / loading length 725 cm
internal width / loading width 248 cm
max. body width 260 cm
internal height / loading height 215 cm
*) subject to change. Exact specifications can be requested from the supplier.
