Kässbohrer K.SBT CS / 20-12 / 18 — Highly maneuverable city trailer. Two-axle city trailer, steered axle, loading length 11 m, payload approximately 23 tons.
Kässbohrer supplies this top-quality city trailer with a forced-steer rear axle, a gross vehicle weight of 30 tons, and a payload of 23 tons with a loading length of 11.025 meters. Thanks to the steered axle and short wheelbase of 600 cm, this trailer has a tight turning circle.
This trailer has a maximum axle load (technical) of 18 tons and can carry 12 tons on the kingpin. Its tare weight is approximately 7 tons, leaving approximately 23 tons of payload.
Features:
– Robust and smooth 20 mm thick side panels, coated with GRP
– Phenolic resin-coated plywood floor with a forklift load capacity of 7.2 tonnes
– Durable catalytic converter-coated steel front panel
– Insulated roof for moisture protection

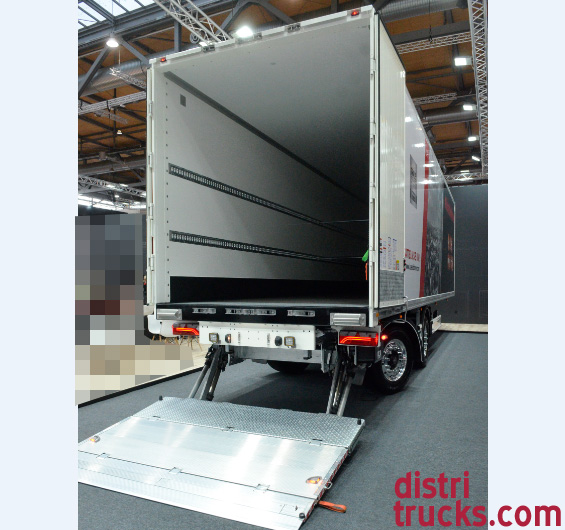

– Slide-under tail lift with a capacity of 2500 kg / length 1700 mm
– Lashing rails for load security
– 11 x 2 lashing rings in the floor
– EN 12642 Code XL certified
– Heavy-duty kick plate
Technical specifications *)
Kässbohrer K.SBT CS / 20-12 / 18 — Highly maneuverable city trailer
Length approx. 1110 cm
Width 255 cm
Height 400 cm
Internal length / loading length 1102.5 cm
Internal width / loading width 249 cm
Internal Height / loading height 271.5 cm
gvw 30,000 kg
tare weight approx. 7,000 kg
Payload approx. 23,000 kg
Max. nose weight 12,000 kg
Max. rear axle load 18,000 kg
*) Subject to change. Exact specifications are available from the supplier.
