Four-axle extendable jumbo semi-low loader with wheel wells, designed for transporting tall and heavy machinery. With a tare weight starting from 11,800 kg, a loading platform height of 770 mm, and wheel wells that reduce the loading height by 425 mm to 345 mm, this semi-trailer enables exceptional transport without special permits.
The extendable chassis allows for loads up to 12,740 mm in 500 mm increments. The reduced loading height, combined with 105 mm of additional ground clearance, makes the vehicle suitable for the safe and stable transport of tall machinery. The front axle of this K.SLA is liftable.
The delivered trailer is part of Kässbohrer’s K.SLA series, available in configurations with 3 to 6 axles. Equipped with an extendable chassis and a 3-stage widening system, the K.SLA can handle a wide range of loads. This low-loader can be equipped with pole holders, container locks, hydraulically operated ramps, additional work lights, and lashing eyes with a capacity of up to 13.4 tons.

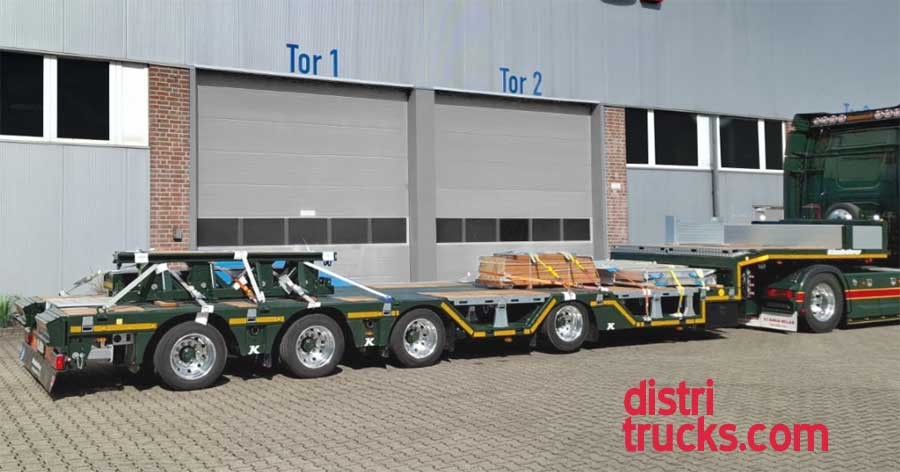

The vehicle in the photo was delivered to Engtra Transporten in Bramsche, Germany.
Technical specifications *)
Kässbohrer K.SLA RJ4 — Extendable jumbo semi-low-loader with wheel wells
Tare weight from 11,800 kg
Maximum low-bed length 12,740 mm
Loading height 770 (low-bed 345) mm
*) Subject to change. Exact specifications are available from the supplier.
