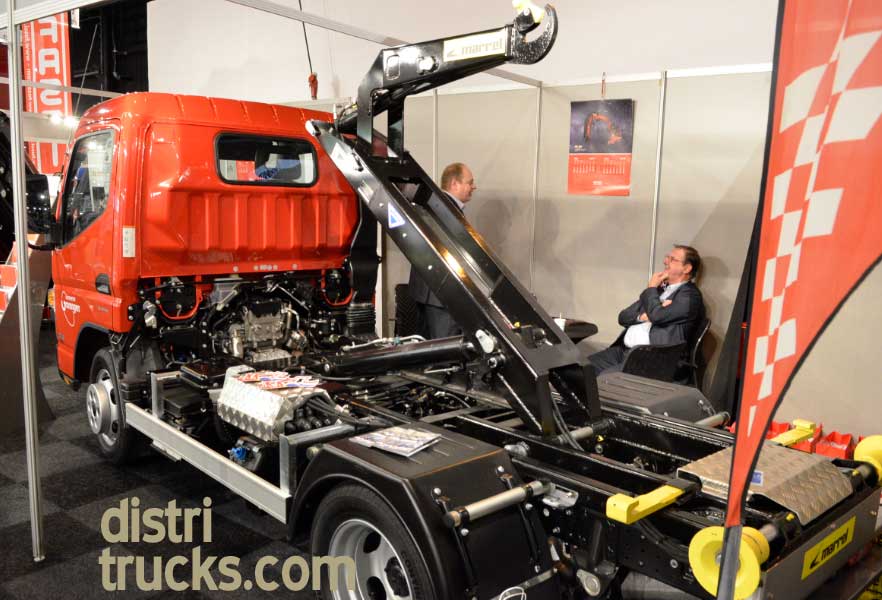

Marrel Ampliroll AL3 PA A26 / A28 / A30. Container system for van chassis (hook arm system).
The French Marrel (part of the Fassi Group) has developed a handy system for unloading and installing small waste containers for van chassis (up to 5.5 tonnes). It is suitable for containers up to 280 cm in length (A26), 300 cm in length (A28) or 320 cm in length (A30) with a maximum loaded weight of 3000 kg. The height of the hook is 92 cm. The rear rollers are intended for containers with a longitudinal beam distance of 106 cm. The installation weighs 370 to 380 kg, depending on the version.
The height of the subframe on the chassis is 13 cm, the width is 86.2 cm. The Ampliroll works with a hydraulic system with a working pressure of 28-29 MPa.
