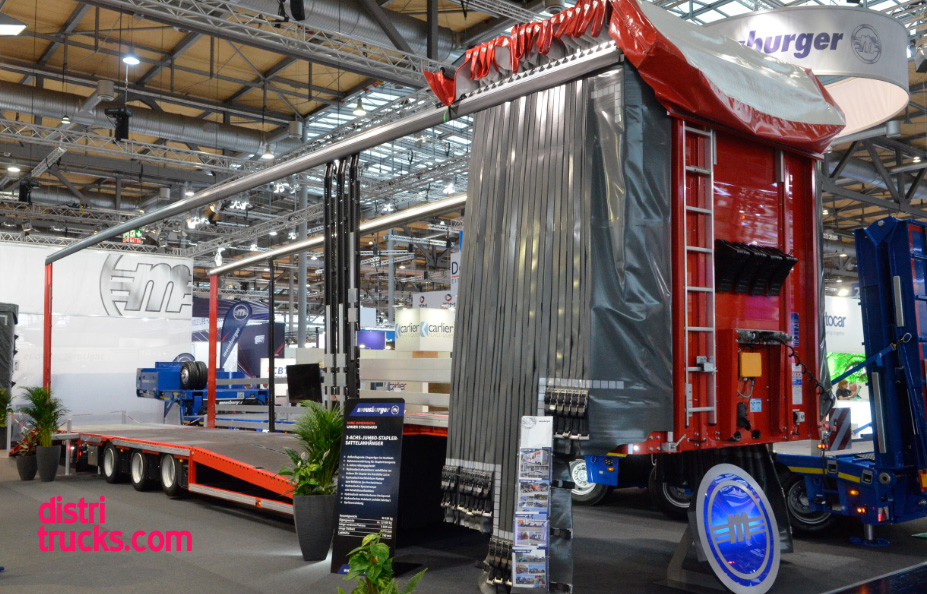

Meusburger — Semi-low loader with a tarpaulin for transporting forklifts. 3-axle trailer, closed with a tarpaulin, loading length 957 cm + 355 cm, load capacity approx. 24.2 tons.
This precisely constructed semi-low loader is designed for transporting sensitive machinery, such as forklifts. The dimensions and weights listed are examples, as these trailers are built to customer specifications.
A striking feature is the lifting roof, which can be driven in the highest position, allowing a 3.6-meter-high machine to be transported. This Meusburger features a hydraulic gooseneck lift, allowing the load to be driven onto the gooseneck.
Features:
– External beams in the raised loading floor
– Frame reinforced for forklift transport
– Friction-steered 3rd axle
– Hydraulically lowering loading platform in front of the axles, for forklifts with a mast height of up to 3.6 m
– Hydraulical gooseneck lift
– Hydraulic loading platform at the rear
– Hydraulically widenable rear portal
– Hydraulically lifting roof
– Hot-dip galvanized
Technical specifications *)
Meusburger — Semi-low loader with tarpaulin for transporting forklifts
Tare weight approx. 12,000 kg
Max. permissible weight 36,220 kg
Payload capacity approx. 24,220 kg
Loadbed length 9,570 mm + Gooseneck length 3,550 mm
Loadbed loading height 79 mm
*) Subject to change. Exact specifications can be requested from the supplier.
