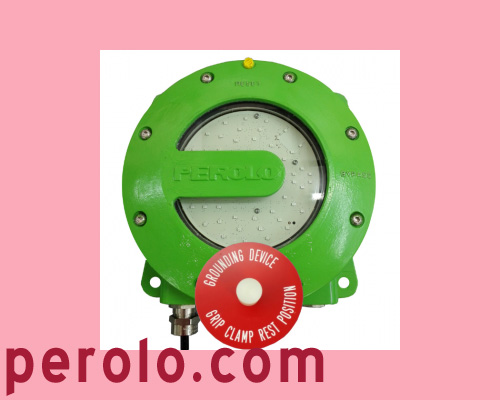

Perolo DCMT4. Earthing (grounding) device.
An grounding cable connects a tank trailer to earth in order to prevent load ignition. This is an important safety feature when loading or unloading flammable liquids such as petrol.
These are the specifications that can be required for such a device. Always ask specifically for specifications of a grounding device.
– Explosion-proof housing, intrinsically safe cable circuit with crocodile clip
– Ex d [ia Ga] II C T6 Gb/Ga.
– Ex [ia Da] tb III C T86¢X Db/Da.
– Ex II 2(1)/1 GD.
– Tightness IP67.
– Electrical supply 230 VAC or 115 VAC, 50 Hz or 60 Hz
– Maximum power consumption: 21 W at 230 VAC and 14 W at 115 VAC.
– Intrinsic safety output parameter of the RS485 interface: U0: 9.9V; I0: 44mA; P0: 109mW; L0: 0,5mH; C0: 3.2microF; L0 / R0: 165microH / Ohm
– Programmable system: the value range can be configured depending on the site and the tank.
– Digital electronics: software.
– System made safe by high level of isolation of the 2 grounding relays (10 kV).
– LED blocks for display (21 green LEDS, 21 red LEDS), 1 Bluetooth terminal for communication.
– Working temperature: -40 degrees C/+70 degrees C.
– Atmospheric pressure: 80 kPa to 110 kPa, air with normal oxygen content (21% by volume).
– Material: cast aluminium AlSi7Mg06.
– EC type examination certificate LCIE 15 ATEX 3075X.
– SIL2 compliant according to IEC 61058 Edition April 2012.
