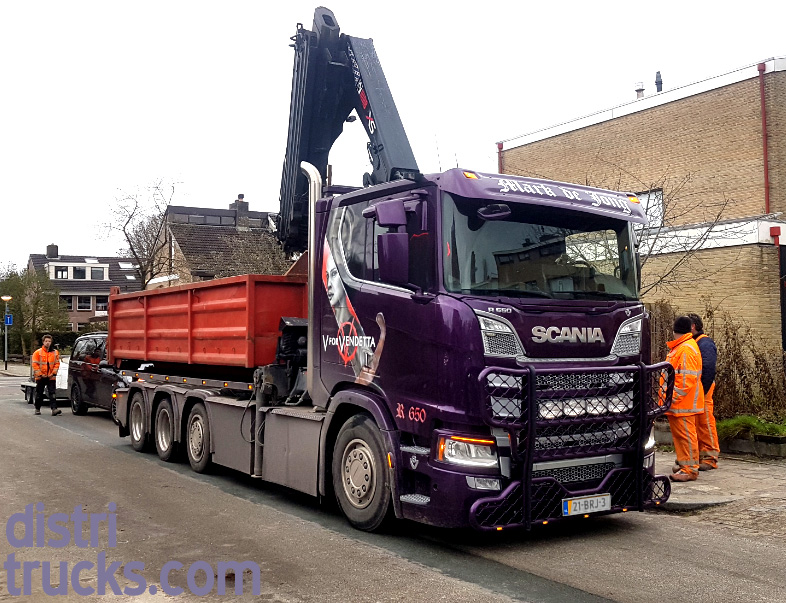

Scania R650 V8 8×2 — heavy-duty chassis with loading crane. Four-axle chassis with crane, net payload 19 tonnes, 650 hp.
Four-axle chassis, three of which are driven. A HIAB XS crane is mounted, allowing the truck to independently load and unload containers. Despite the enormous crane, this Scania has a net payload of almost 19 tonnes, so it easily handles heavy loads. The front axle is a 10-ton axle, and the rear axles form a 37-ton tridem bogie.
The driver also has everything he needs when it comes to engines. Under the R-cab is the 16.4-liter Scania V8 engine with an output of 650 hp. This chassis is equipped with a drawbar coupling for towing a trailer with a maximum weight of 31.9 tonnes.
Technical specifications *)
Scania R650 V8 8×2 — heavy-duty chassis with loading crane
Model year 2019 –
Engine type: V8 diesel
Displacement: 16353 cc
Emission class: Euro 6
Max. power: 478 kW
Third axle drive
Number of tires: 12
Axle configuration: 8×2
Wheelbase of vehicle in photo: 690 cm
Tare weight incl. body 18,013 kg
Gross vehicle weight 37,000 kg
Max. front axle load 10,000 kg
Max. rear axle load 27,000 kg
Load capacity 18,987 kg
Max. trailer weight 31,887 kg
Vehicle length in photo 995 cm
Width 255 cm
Number of seats 2
Cab type R
*) Subject to change. Exact specifications can be requested from the supplier.
