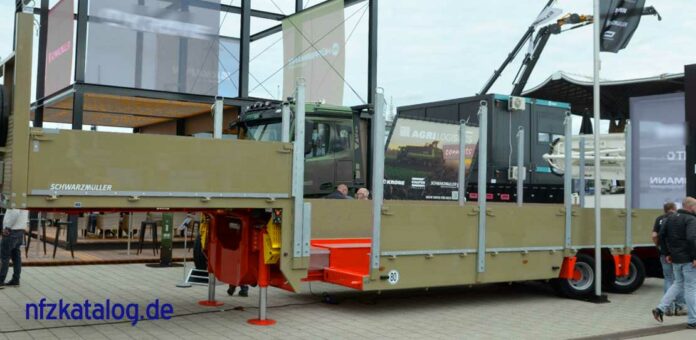

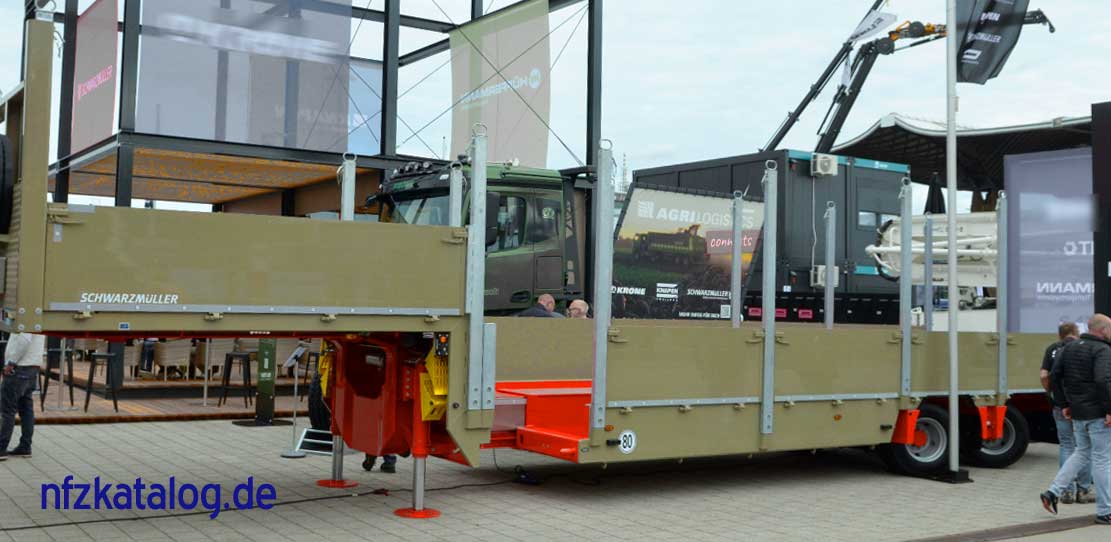

Schwarzmüller 2-A-TÜ – RH240 – extendable inloader. Inloader with a gooseneck, extendable by 1.42 m, with a payload of approximately 27,700 kg.
A specialized trailer from Schwarzmüller, designed for transporting tall, narrow objects such as concrete slabs or glass. It features a central extendable frame attached to a traditional gooseneck, with low-profile loading deck sections positioned on either side of the central beam. Equipped with four independent wheels capable of a steering angle of up to 55 degrees. Includes fold-down side panels. The unladen weight is approximately 10,300 kg, with a maximum permissible weight of 39,000 kg. Features hydraulic landing legs beneath the gooseneck. Tire size: 245/70R17.5 (8x).
Technical specifications *) Schwarzmüller 2-A-TÜ – RH240 – extendable inloader
Internal length / loading length 1160 cm
Internal width / loading width 243 cm
gvw 39000 kg
Kerb weight 10300 kg
Max payload 28700 kg
*) Subject to change. Please contact the supplier for exact specifications.
