Spier Athlet S+ — Iveco eMoovy — City delivery van, low entry, electric drive, load length 268 cm, payload 1125 kg.

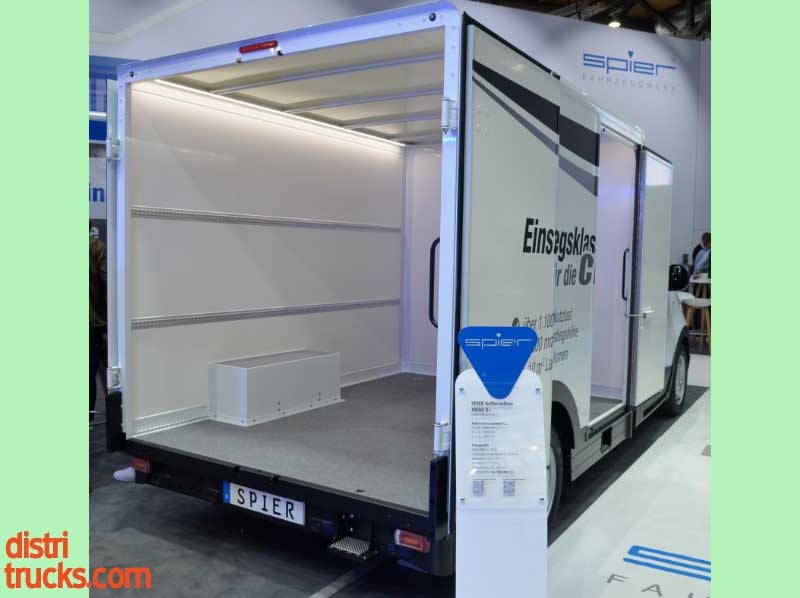

Cargo bed manufacturer Spier developed this cargo space to combine with the Iveco eMoovy (a rebadged Hyundai), an electrically powered chassis. The result is a fully electric delivery van with a very accessible cargo space (entry height 50 cm, load height 190 cm), good performance, and a range of 265 to 320 km (depending on the battery chosen).
A characteristic feature of the eMoovy is the low chassis. Spier has managed to keep the cargo bed so low that you can effortlessly enter it from the rear and the side. These types of vehicles are usually used for parcel delivery, and the absence of exhaust fumes is naturally an advantage here; you are allowed to enter all environmental zones with it. The eMoovy always has a wheelbase of 350 cm. The box shown by Spier has a length of 270 cm; the maximum box length permitted on this chassis is 320 cm. The internal width of the cargo box is 198 cm, but there are cutouts for the wheel arches.
With a GVW of 3.5 tonnes, the payload of the complete vehicle is approximately 1,125 kg.
The driver’s cab of the Iveco eMoovy offers the comfort of a passenger car. Simple operation, good acceleration, and many safety options including an emergency braking system, one-pedal operation, keyless entry, and the ability to remotely track vehicles.
technical specifications *)
Spier Athlet S+ — Iveco eMoovy — electric cargo van
model year from 2025
motor type electric
max. power 53 (peak: 160) kW
max. torque 115 (peak: 350) Nm
drive front axle
tire size 215/65R17
number of tires 4
axle configuration 4×2
wheelbase 350 cm
unladen weight 1970 (small battery) – 2020 (large battery) kg
unladen weight on front axle 1315 kg
unladen weight on rear axle 630 kg
max. permissible mass 3500 kg
max. front axle load 1610 kg
max. rear axle load 1995 kg
net payload 1125 kg
range 265 (small battery) – 320 (large battery) km
drive battery capacity 63 (small battery) – 76.1 (large battery) kWh
max. charging capacity 350 kW
length approx. 550 cm
width approx. 210 cm
height approx. 250 cm
internal length / load length 268 cm
max. body length 320 cm
internal width / load width 198 cm
max. body width approx. 220 cm
internal height / load height 190 cm
loading opening width approx. 195 cm
loading opening height approx. 195 cm
chassis height 49.5 cm
lifting height approx. 50 cm
number of seats 2
cab length 265 cm
*) subject to change. Exact specifications can be requested from the supplier.
