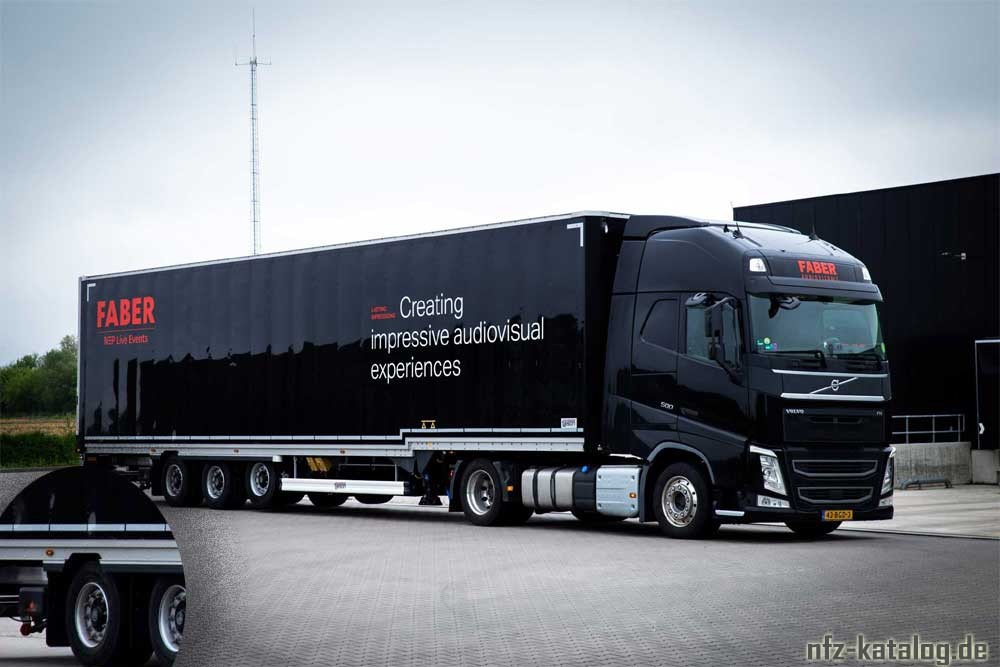

Talson TGG TAL 12 / 27 Mega Box Event Trailer — Manoeuvrable mega trailer with ventilation. Large volume trailer, loading height 294 cm, loading capacity 21.7 tons, ventilated.
This trailer was built for Faber from Sint-Annaparochie (NL), a company active in equipment for events. Think of sound equipment and large LED screens. The trailers are used under various climatic conditions; to prevent condensation in the trailer, the walls, floors and roof are insulated and there are hatches at the front and rear for ventilation. These can optionally be equipped with mechanical ventilation. Striking: the binding rails are not located in the side walls but on the side walls to prevent a cold bridge.
Furthermore, this trailer has a liftable first axle and a steered last axle, which makes it very manoeuvrable.
Technical data Talson TGG TAL 12 / 27 Mega Box Event trailer (special for Faber AV): *)
– Self-supporting aluminium box with semi-frame
– Three air-sprung 9-ton axles with disc brakes, tyre size 445/45 R19.5
– First axle with automatic lifting device
– Third axle steers automatically, automatically in centre position when reversing
– Coupling height 950 mm
– Capacity 33 Euro pallets.
– Equipped with LoadLok binding rails on the side walls, on six levels (not recessed)
– Empty weight approx. 8640 kg (excluding tail lift), gvw 39,000 kg, payload approx. 21,695 kg.
– Equipped with Dhollandia tail lift, capacity 3,000 kg, platform length 2,200 mm, with Power-down option
– Floor with 26 recessed lashing eyes
– Ramp holder (holder for ramps) on the underside of the chassis.
Talson TGG TAL 12 / 27 Mega Box Event trailer — Manoeuvrable mega trailer with ventilation
Length approx. 1360 cm
Width 255 cm
Height 400 cm
Int. length / loading length 1353.5 cm
Int. width / loading width 247.2 cm
Int. height / loading height 294 cm
gross vehicle weight 39000 kg
tare weight excl. tail lift 8640 kg
payload excl. tail lift 30360 kg
max. fifth wheel pressure 12000 kg
max. rear axle load 27000 kg
*) subject to change. Exact specifications can be requested from the supplier.
