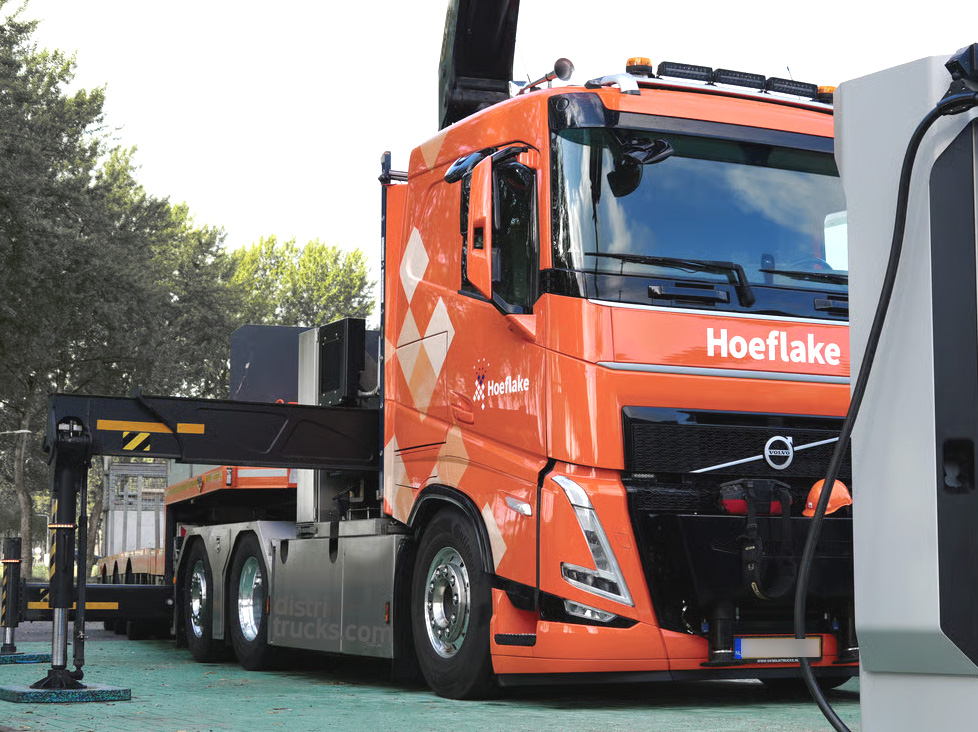

Volvo FH 460 6×2 NLA — Tractor with trailing axle and crane. Tractor, 6×2 with trailing axle, truck-mounted crane, power 345 kW / 460 hp.
Volvo FH tractor with crane, used for loading and unloading heavy objects onto a semi-trailer. Due to the heavy crane, a third axle is necessary, which is a liftable trailing axle. This tractor is equipped with a sliding fifth wheel and a drawbar coupling at the rear.
Technical specifications *)
Volvo FH 460 6×2 NLA — Tractor with trailing axle and crane
Model year 2022 –
Engine type: Inline 6-cylinder turbodiesel
Displacement: 12777 cc
Emission class: Euro 6
Max. power output: 345 kW
Revs at max. power: 1400 rpm
Max. torque: approx. 2400 Nm
Maximum torque at 1050 rpm
Number of gears: 12 (I-Shift)
Automatic transmission available
Drive axle: 2
Tire size: R22.5
Number of tires: 8
Axle configuration: 6×2
Wheelbase: 487 cm
Tare weight (vehicle in the photo): 19285 kg
Gross vehicle weight: 30500 kg
Maximum front axle load: 10000 kg
Maximum rear axles load: 20500 kg
Maximum fifth-wheel load: 11215 kg
Maximum gross train weight: 50000 kg
Length: 755 cm
Width: 255 cm
Height: Approx. 330 cm
Number of seats: 2
Cab type: Sleeper cab
Cab length: 231 cm
*) Subject to change. Exact specifications are available from the supplier.
