Volvo Trucks FMX Electric 6×2 widespread chassis — gross vehicle weight 31.5 tonnes. Truck chassis, electric drive, 332 kW, 6×2 widespread, steered trailing axle.

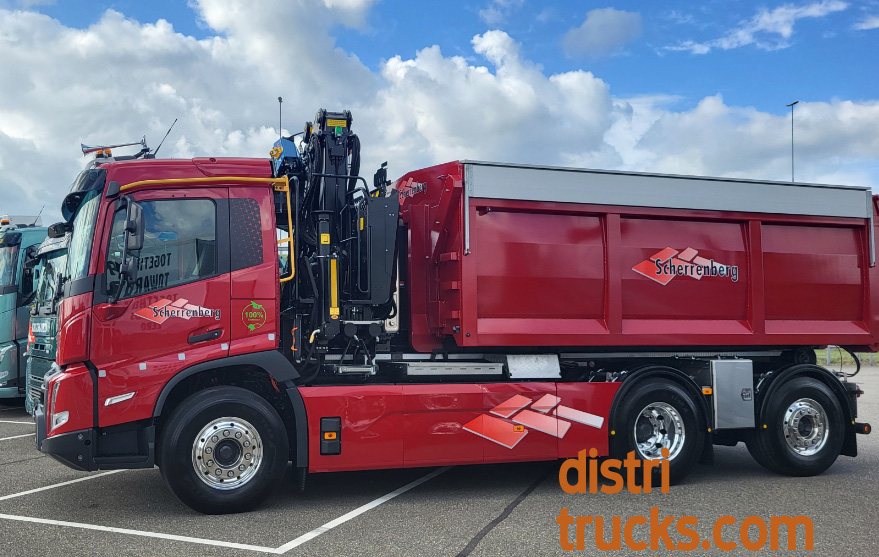

Electrically powered Volvo FMX chassis with three axles. This FMX is not actually all that different from the FM. The difference lies in the sturdy bumper and the angled protective plate on the underside of that bumper. This FMX has two electric motors with a combined output of 332 kW. It is also available with three motors, allowing it to tow a trailer.
What immediately stands out about this vehicle is the third axle, positioned far back. This is a steered, ten-ton lifting axle. Thanks to the widespread arrangement of the two rear axles, this chassis achieves a maximum permissible weight of 31.5 tonnes. Furthermore, this truck is equipped with a gearbox-PTO, a robust grab crane, and a VDL hooklift system. The net payload is 13.3 tonnes.
Technical specifications *)
Volvo Trucks FMX Electric 6×2 widespread chassis — gross vehicle weight 31.5 tonnes
Model year 2024 –
Engine type: Electric
Emission class: Z
Max. power output: 332 kW
Drive axle: 2
Number of tires: 8
Axle configuration: 6×2
Wheelbase: 615 cm
Tare weight including body: 18,195 kg
Gross vehicle weight: 31,500 kg
Max. axle load front: 10,000 kg
Max. axle load rear: 21,500 kg
Net payload: 13,305 kg
Max. charging power: 250 kW
Max. trailer weight: 750 kg
Length: 858 cm
Width: 255 cm
Number of seats: 2
*) Subject to change. Exact specifications are available from the supplier.
