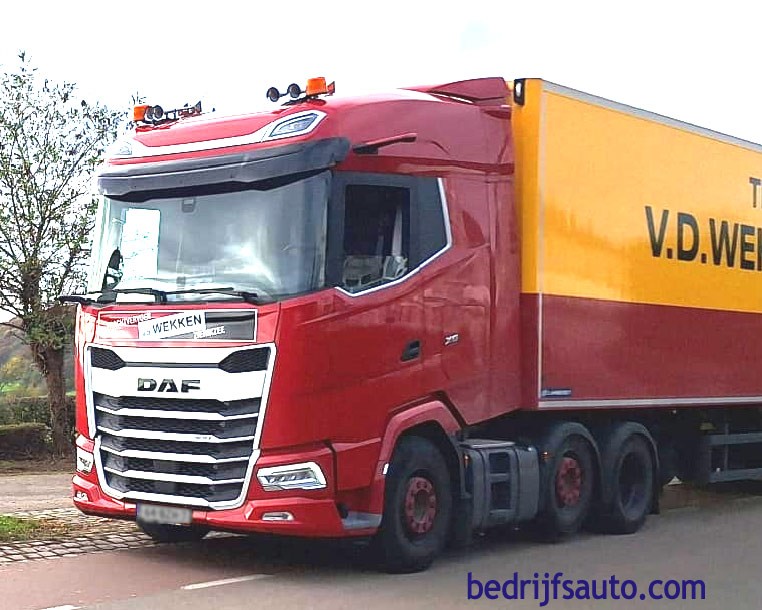

DAF XG 480 FTG. Tractor unit, 6×2, with steered pusher axle.
DAF tractor unit with XG cab, 480 hp engine, three-axle configuration, steered pusher axle. Maximum fifth-wheel load approx. 18 tonnes. This is the version with a 395 cm wheelbase. Also available with a 415 cm wheelbase.
Technical specifications *) DAF XG 480 FTG
Model year series 2022 –
Engine type 6-cylinder diesel
Displacement 12,902 cc
Emission class Euro 6
Max. engine power 355 kW
Engine speed at max. power 1,500 rpm
Max. torque approx. 2,300 Nm
Engine speed at max. torque 1,000 rpm
Transmission gears 12
Automatic transmission available Standard automated manual transmission
Driven axle Axle 3
Tire size 315/70 R22.5
Number of tires 8
Axle configuration 6×2
Wheelbase 395 cm
Curb weight approx. 8,739 kg
Gvw 27,000 kg
Max. front axle load 8,000 kg
Max. rear axle load 19,000 kg
Max. fifth-wheel load approx. 18,000 kg
Gross combination weight 50,000 kg
Length 647 cm
Width 255 cm
Cab type XG
*) We cannot be held responsible for the data presented here.
