Renault Trucks D-Wide E-Tech 6×2 chassis — HIAB Ultima 18S hooklift system. Truck chassis with hooklift system, electric drive.
The electrically powered Renault Trucks D-Wide, known as the E-Tech, has been in production for four years now, and interest in this truck is growing rapidly. One of its applications is transporting waste containers over short distances. Here we see a three-axle version with a liftable steered tag axle, with a gross vehicle weight of either 26 or 27 tonnes. The range depends on the selected battery pack. Charging the drive battery is possible with either a fast charger or a 380V shore power connection.

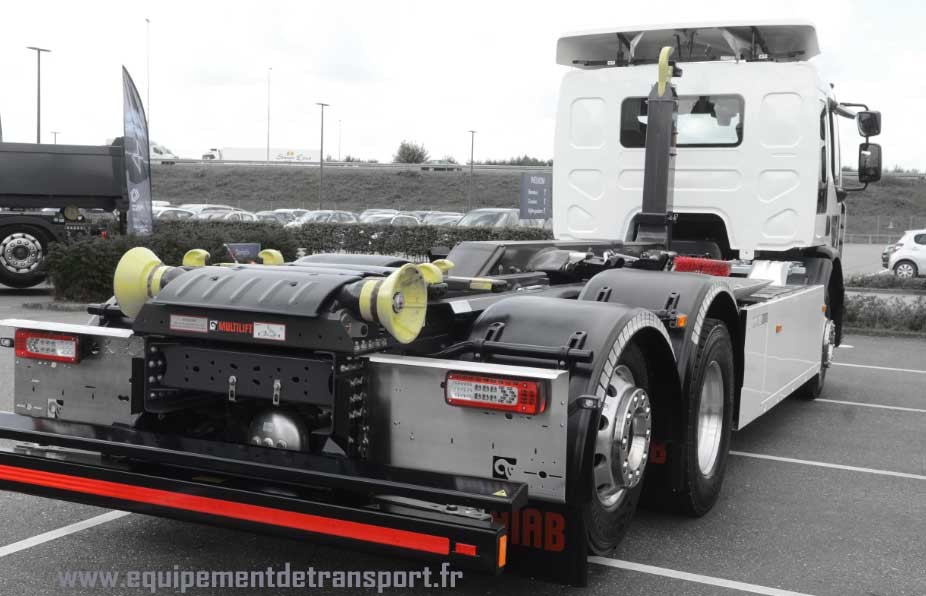

This E-Tech D-Wide is equipped with a HIAB Ultima 18S hooklift system, the hydraulics of which are electrically driven from the chassis’ PTO. The HIAB Ultima system is one of the most modern hooklift systems on the market. For example, it features LoadBoost, which automatically adjusts the damping to the weight of the container (whether loaded or empty). Another feature of this system is Sequence Performance, which ensures that all functions are performed in the correct sequence, with the simplest operation. Also worth mentioning: Safe Positioning (automatically positions the container correctly based on its length), Integrated Load Weighing (built-in weighing function), FutureTouch (display with controls in the cab), and Connectivity (distributing status messages to the planning department).
GVW: 26 t
Technical gross weight: 27 t
Available wheelbase: 3,900 mm
Two electric motors with a total output of 370 kW (continuous output of 260 kW)
Maximum torque of electric motors: 850 Nm
Maximum torque at rear axle: 28 kNm
Two-speed gearbox
Energy storage: Lithium-ion batteries, 200 kWh.
Driving range: from 200 km
For exact specifications tailored to your needs, please submit a request here.
Technical specifications *)
Renault Trucks D-Wide E-Tech 6×2 chassis — HIAB Ultima 18S hooklift system
Model year 2019 –
Engine type: Electric motor
Max. power: 370 (260 continuous) kW
Max. torque: 850 Nm
Number of gears: 2
Automatic transmission available as standard
Drive axle: 2
Number of tires: 8
Axle configuration: 6×2
Wheelbase: 390 cm
Gvw: 26,000 – 27,000 kg
Range: depending on model
Cabin type: Day cab
*) Subject to change. Exact specifications are available from the supplier.
