Scania P450 8×2*6. Four-axle chassis with P-cab, three steered axles, GVW 37,000 kg.

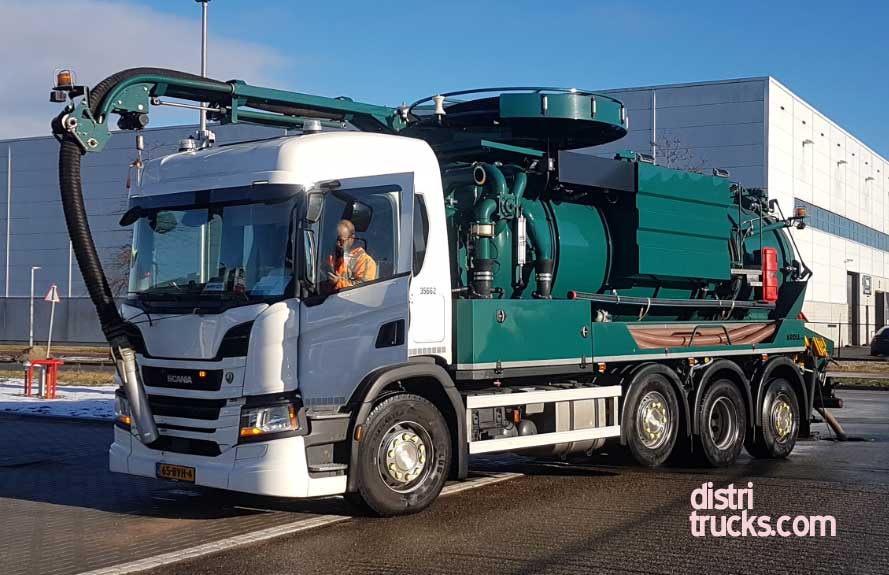

We do not often see the P-cab on an 8×2 chassis, but it is possible. In fact, Scania even supplies this chassis with an L-cab on order! The reason is often a special superstructure, such as a crane, a cherry picker, or, as here, a pump with a slewing ring used as a sewage pump in North Holland.
The 12.7-liter diesel is familiar: it delivers 450 hp / 331 kW and has six cylinders. The chassis features three steered axles: axles 1, 2, and 4. Axles 2 and 4 are liftable, achieving high maneuverability. It is also worth mentioning that the front axle is a 10-ton axle, axle 2 has a maximum load of 6,900 kg, and for axle 4, this is 8,600 kg.
technical specifications *)
Scania P450 8×2*6
model year 2023 –
engine type 6-cylinder in-line turbodiesel
displacement 12,740 cc
emission class Euro 6
max. power 331 kW
rpm at max. power 1900 rpm
max. torque approx. 2350 Nm
rpm at max. torque 1100 rpm
drive axle 3
number of tires 10
axle configuration 8×2*6
wheelbase 630 cm
gvw 37,000 kg
max. front axle load 10,000 kg
max. rear axle load 27,000 (6,900 + 11,500 + 8,600) kg
max. train weight 50,000 (technical: 60,000) kg
length 970 cm
width 255 cm
chassis height approx. 110 cm
cab type P
double cab available yes
*) subject to change. Please request exact specifications from the supplier.
