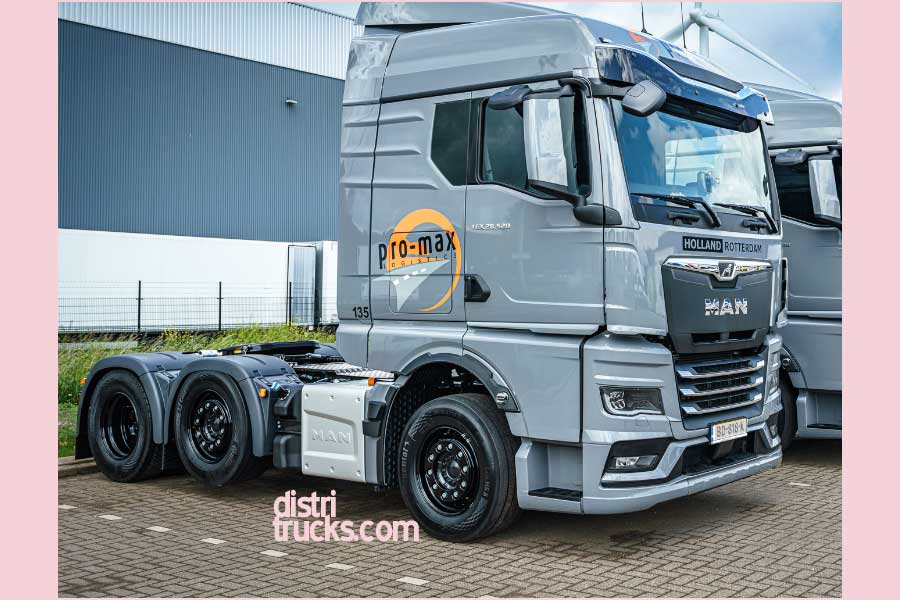

MAN TGX 26.520 6×2/4 BLS — three-axle tractor with increased payload. Three-axle tractor with steered front axle, GVW 28 tonnes, power 382 kW.
MAN TGX tractor with three axles. The middle axle is a liftable steered front axle in a standard size (22.5-inch rims). Thanks to the nine-ton front axle, the GVW of this truck comes to 28 tonnes (9 front + 19 rear), and the maximum weight on the (movable) fifth wheel amounts to a generous 19,365 kg.
Equipped with the D26 inline six-cylinder diesel engine, displacement 12.4 liters, Euro 6E, power 520 hp / 382 kW. Also available with a rigid front axle, as MAN TGX 26.520 6×2/2. Also available as MAN TGX 26.480 6×2/4 with 480 hp power.
technical specifications *)
MAN TGX 26.520 6×2/4 BLS — three-axle tractor with increased payload
model year 2026 –
engine type 6-cylinder diesel D26
displacement 12,419 cc
emission class Euro 6
max. power 382 kW
rpm at max. power 1900 rpm
max. torque approx. 2600 Nm
rpm at max. torque 1000 rpm
number of gears 16 forward. 2 reverse
drive axle 3
tire size 315/70 R22.5
number of tires 8
axle configuration 6×2/4
wheelbase 395 cm
tare weight 8635 kg
tare weight on front axle approx. 5540 kg
tare weight on rear axle approx. 3095 kg
gvw 28000 kg
max. front axle load 9000 kg
max. rear axle load 19000 kg
max. fifth wheel load 19365 kg
max. train weight 50000 kg
length 649 cm
width 255 cm
height approx. 400 cm
chassis height approx. 104 cm
fifth wheel height approx. 112 cm
*) subject to change. Exact specifications can be requested from the supplier.
